Chapter 6: Timber Seasoning¶
Definition and purpose¶
Seasoning of timber is the process of removing moisture or sap from freshly cut down trees. The percentage of moisture is very high in freshly felled trees which may cause problems like shrinkage and distortion. It is the initial step for timber utilization. The purpose of timber seasoning are as follows:
Object of seasoning¶
Properly seasoned timber will not crack, wrap or shrink, if protected from weather. The main objectives for seasoning are as follows:
Methods of seasoning¶
Seasoning of timber is done in either artificial or natural ways. Some of the seasoning methods are listed below:
1) Natural seasoning¶
a) Air seasoning¶
In this method of seasoning, sawn timber is stacked in a dry place about 30 cm above floor level and two pieces are kept about 40-50 cm apart which makes it possible for free circulation of air. It should not be kept in direct sunlight and in wet environment.
Advantages: Simple and cheaper and requires less attention.
Disadvantages: Very slow process, more space is required, threat of insects and fungi during seasoning.
b) Water seasoning¶
In water seasoning, logs are completely immersed in running stream of water for about one month. The sap, sugar, gum and other unnecessary materials are removed and replace by water.
Advantages: Quick process, boosts drying process, shrink and wrap problems are minimized and wood becomes less prone to insects or decay.
Disadvantages: Reduction in elasticity and durability
2) Artificial seasoning¶
a) Kiln seasoning¶
In kiln method, the timber is seasoned under controlled environments with proper air circulation and ventilation system. The wooden pieces are stacked carefully in huge trollies and then placed inside the brick kiln according to wooden moisture level. Then, water is heated and resulting steam circulates inside and around the wood boards. With time, the amount of steam is reduced until the desired moisture level is achieved in wood. Although seasoning is done in lesser time (i.e. about 2 weeks), the quality of wood is inferior when compared with naturally seasoned wood.
b) Chemical/salt seasoning¶
In chemical seasoning, the timber is totally submersed in a suitable salt solution which has the tendency to absorb water from the timber. Then, timber is allowed to dry after moisture content is removed. It reduces the chances of formation of external cracks because internal surface of timber dries before external surface.
c) Electrical seasoning¶
In electrical seasoning, the timber is subjected to high frequency alternating currents. The resistance of timber is measured at certain interval of time. And when the required resistance is reached, seasoning process is stopped because resistance of timber increases by reducing moisture from timber. It works in a simple idea that heat is produced when poor conductors are placed in the field of high frequency. Although this process gives superior quality of timber, it is not commonly used because of its high cost and lack of control of moisture content.
3) Combined seasoning¶
In combined seasoning, combination of different seasonings is employed for better timber. For example, solar seasoning is the combination of air and kiln seasoning.

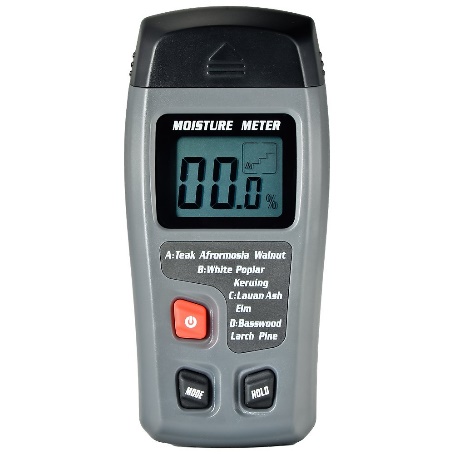

Moisture meter¶
A moisture meter gives approximate reading of moisture present in wood. It provides fast solution to determine which wood is suitable as per the requirement. The back of the meter or some pointer is place over the surface of wood, then moisture meter gives record of the approximate moisture level present in that wood
Calculation of moisture content in timber in percentage¶
- The percentage of moisture content in timber is calculated using two ways.
Using meter
Using seasoning techniques
The formula to calculate the moisture content in timber is.
MC = [ ( WW - DW ) x 100 ] / DW
For example, Find the moisture content of a tree whose weight before seasoning is 20 grams and after seasoning is 15 grams.
Here we have,
WW = 20 grams
DW = 15 grams
MC = ?
We know that,
MC = [ ( WW - DW ) x 100 ] / DW
= [ ( 20 - 15 ) x 100 ] / 15
= [ 5 x 100 ] / 15
= 33.33 %
Therefore, moisture content in given wood is 33.33 percentage.
What’s next?¶
Now we will learn about different defects that hampers timber in next chapter.
